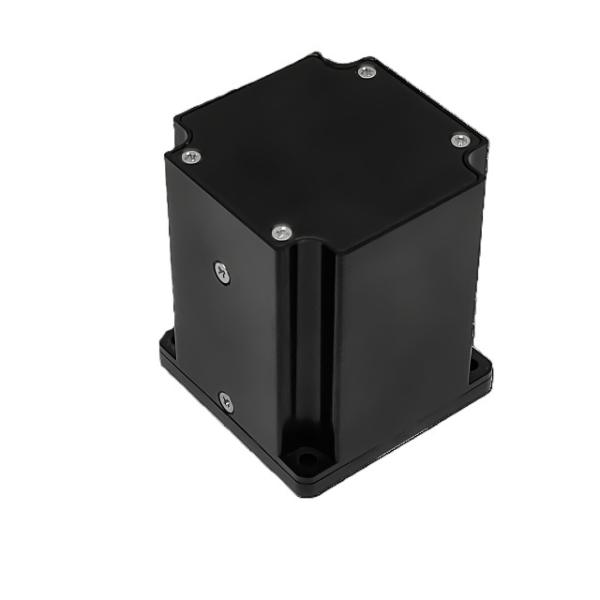

Mizer-60D Double-axis fiber optic gyroscope (FOG)

Name: Mizer60D Doubleaxis fiber optic gyroscope FOG
Brand: Star & Inertia Technology
Price: 1000 USD

Brand Name : Star & Inertia Technology

Model Number : FOG（Mizer-60D）

Place of Origin : China

MOQ : 1 set

Supply Ability : 5000 set per year

Delivery Time : 30 work days

Price : $1000-$100000

Performance\Dynamic Range : ≥±400°/s

Performance\Bias in-run : ＜2°/h

Performance\Accuracy（100sec） : 1°/h~0.5°/h

Performance\ARW（Angular random walk） : ＜0.04°/√hr,1σ

Performance\Vibration screening : 20~2000Hz，6.06g

Performance\Bandwidth : ＞200Hz

Electrical Interface\Turn on time : 10s

Electrical Interface\Output signal format : RS-422

Electrical Interface\Built in self-test : --

Electrical Interface\Output signal update rate : 500Hz~4000Hz

Electrical Interface\Output signal baud rate : 230400bps~921600bps

Electrical Interface\Operating temperature : - 40℃ ~ + 70℃

Electrical Interface\Storage temperature : - 55℃ ~ + 85℃

Physical Specifications\Power supply : 5V

Physical Specifications\Connector (9 pins) : J30J-9ZKP

Physical Specifications\Power consumption : ≤5w

Physical Specifications\MTBF (per MIL-HDBK-217-F) : ＞120000hr

Physical Specifications\Weight : ≤260g

Physical Specifications\Dimensions : 60mm×68mm×47mm

Contact Now

FOG(Mizer-60D)

Precision FOG Features:

Digital closed-loop Sagnac technology
4kHz real-time output
1/2/3-axis configurations
Shared-resource multi-axis design
Applications:
• Guidance systems • Stabilization • Industrial control
Advantages:

Compact modular design
Solid-state construction
Instant operation
Low SWaP-C
Extended service life

Series		FOG Series
Type		Mizer-60D
Performance	Dynamic Range	≥±400°/s
	Bias in-run	＜2°/h
	Accuracy(100sec)	1°/h~0.5°/h
	ARW(Angular random walk)	＜0.04°/√hr,1σ
	Vibration screening	20~2000Hz,6.06g
	Bandwidth	＞200Hz
Electrical Interface	Turn on time	10s
	Output signal format	RS-422
	Built in self-test	--
	Output signal update rate	500Hz~4000Hz
	Output signal baud rate	230400bps~921600bps
	Operating temperature	- 40℃ ~ + 70℃
	Storage temperature	- 55℃ ~ + 85℃
Physical Specifications	Power supply	5V
	Connector (9 pins)	J30J-9ZKP
	Power consumption	≤5W
	MTBF (per MIL-HDBK-217-F)	＞120000hr
	Weight	≤260g
	Dimensions	60mm×68mm×47mm
