Mizer-70T Three-Axis fiber optic gyroscope (FOG)

Name: Mizer70T ThreeAxis fiber optic gyroscope FOG
Brand: Star & Inertia Technology
Price: 1000 USD

Brand Name : Star & Inertia Technology

Model Number : FOG（Mizer-70T）

Place of Origin : China

MOQ : 1 set

Supply Ability : 5000 set per year

Delivery Time : 30 work days

Price : $1000-$100000

Electrical Interface\Output signal format : RS-422

Electrical Interface\Built in self-test : --

Electrical Interface\Output signal update rate : 500Hz~4000Hz

Performance\Dynamic Range : ≥±400°/s

Electrical Interface\Output signal baud rate : 230400bps~921600bps

Performance\Bias in-run : ＜1°/h

Electrical Interface\Operating temperature : - 40℃ ~ + 70℃

Performance\Accuracy（100sec） : 0.5°/h~0.2°/h

Electrical Interface\Storage temperature : - 55℃ ~ + 85℃

Performance\ARW（Angular random walk） : ＜0.02°/√hr,1σ

Physical Specifications\Power supply : 5V

Performance\Vibration screening : 20~2000Hz，6.06g

Physical Specifications\Connector (9 pins) : J30J-9ZKP

Physical Specifications\Power consumption : ≤5w

Performance\Bandwidth : ＞200Hz

Physical Specifications\MTBF (per MIL-HDBK-217-F) : ＞100000hr

Electrical Interface\Turn on time : 10s

Physical Specifications\Weight : ≤500g

Physical Specifications\Dimensions : 70mm×70mm×53mm

Contact Now

FOG(Mizer-70T)

This FOG series implements all-digital Sagnac interferometry with >4kHz bandwidth output. Multi-axis units employ common optical components for synchronized orthogonal measurements.

Design highlights: 1) Flexible mechanical configuration; 2) No moving parts; 3) Sub-millisecond initialization; 4) Low electromagnetic signature; 5) 50,000+ hour MTBF.

Series		FOG Series
Type		Mizer-70T
Performance	Dynamic Range	≥±400°/s
	Bias in-run	＜1°/h
	Accuracy(100sec)	0.5°/h~0.2°/h
	ARW(Angular random walk)	＜0.02°/√hr,1σ
	Vibration screening	20~2000Hz,6.06g
	Bandwidth	＞200Hz
Electrical Interface	Turn on time	10s
	Output signal format	RS-422
	Built in self-test	--
	Output signal update rate	500Hz~2000Hz
	Output signal baud rate	230400bps~921600bps
	Operating temperature	- 40℃ ~ + 70℃
	Storage temperature	- 55℃ ~ + 85℃
Physical Specifications	Power supply	5V
	Connector (9 pins)	J30J-9ZKP
	Power consumption	≤5W
	MTBF (per MIL-HDBK-217-F)	＞100000hr
	Weight	≤500g
	Dimensions	70mm×70mm×53mm

Product Tags:

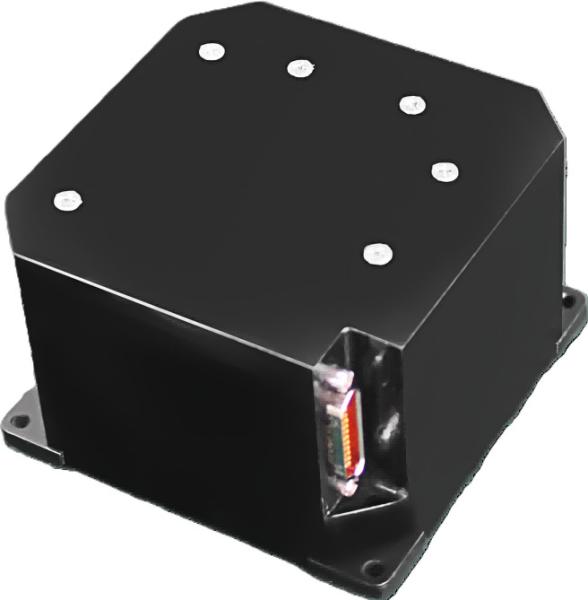

Mizer-70T Three-Axis fiber optic gyroscope (FOG) Images
